KOA Speer RN73H Film Chip Resistors

KOA Speer RN73H Film Chip Resistors are constructed from high heat resistant metal and offer improved moisture resistance by a special protective coating. The series also offers a high precision option (±0.05%) available with standard products and lead-free terminations that meet EU RoHS requirements. KOA Speer RN73H Film Chip Resistors include AEC-Q200 qualified case sizes: 0402 (1E), 0603(1J), 0805 (2A), 1206 (2B), and 1210 (2E).

Features

  • High precision type ±0.05% is available with standard products
  • Improved moisture resistance by a special protective coating
  • -55°C to +155°C operating temperature range
  • Black coating
  • Products with lead-free terminations meet EU RoHS requirements
  • 85°C rated ambient temperature
  • AEC-Q200 qualified parts

Part Designations

RN73H1E with 1/16W power rating @ 70°C

RN73H1J with 1/10W power rating @ 70°C

RN73H2A with 1/8W power rating @ 70°C

RN73H2B with 1/4W power rating @ 70°C

RN73H2E with 1/4W power rating @ 70°C

Dimensions & Construction

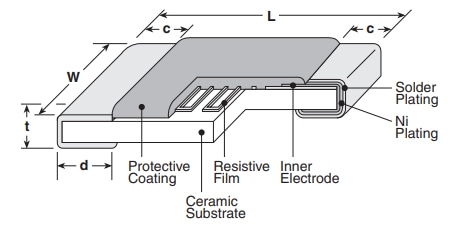

Mechanical Drawing - KOA Speer RN73H Film Chip Resistors
