ROHM Semiconductor SML-D13x Mini-Mold Chip LEDs

ROHM Semiconductor SML-D13x Mini-Mold Chip LEDs are based on original device technology that enables high brightness and reliability. These ROHM Semiconductor SML-D13x LEDs are available in yellow-green, orange, red, and green variants with a luminous intensity rating from 20mcd to 120mcd. The SML-D13x LEDs operate at 20mA forward current, 2V/2.1V forward voltage, and 5V reverse voltage. These SML-D13x LEDs are available in 1.6mm x 0.55mm x 0.8mm dimensions with a 0603 package.

Features

  • Original device technology enables high brightness and high reliability
  • 20mA forward current
  • 2V/2.1V forward voltage
  • 5V reverse voltage
  • 1.6mm x 0.55mm x 0.8mm dimensions
  • Luminous intensity rating
    • 20mcd, 45mcd, 55mcd, 85mcd, and 120mcd
  • Wavelength temperature range
    • 564.5nm, 571nm, 605nm, 620nm, and 630nm
  • Illumination color
    • Yellow-green, orange, green, and red

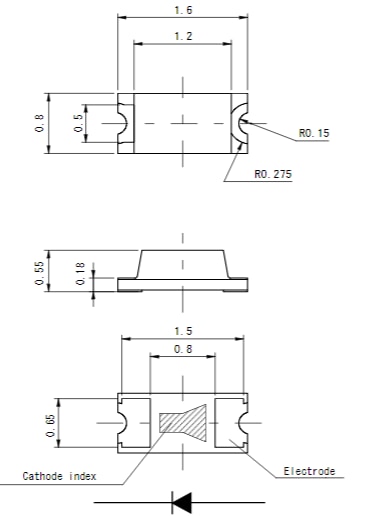

SML-D13x LEDs Dimensions

Mechanical Drawing - ROHM Semiconductor SML-D13x Mini-Mold Chip LEDs
